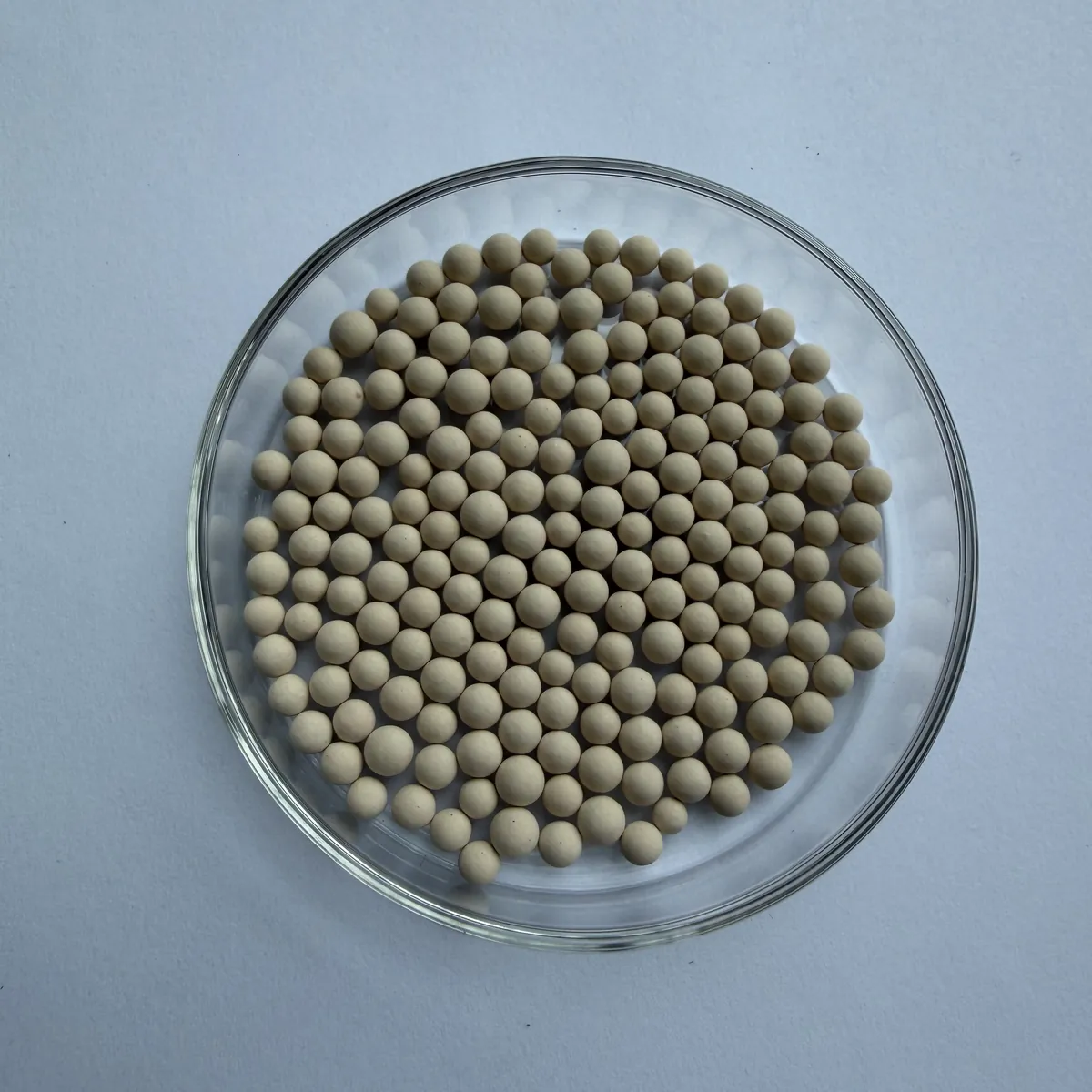

13X Molecular Sieve
Product Code: SQ-13X-B · Standard: HG/T2690-2012 · CAS: 63231-69-6
13X Molecular Sieve is an alkali-metal aluminosilicate with the largest effective pore opening in the standard A/X series — approximately 10 Ångströms. It adsorbs water, CO₂, H₂S, mercaptans, and hydrocarbons simultaneously, making it the first choice for air separation unit (ASU) pre-purification, natural gas deep treating, and general industrial gas drying.
- Pore size ~10Å — highest capacity among standard molecular sieves; adsorbs H₂O, CO₂, H₂S, mercaptans & hydrocarbons
- Static water adsorption ≥ 24% wt — superior capacity vs 3A/4A/5A
- Static CO₂ adsorption ≥ 16.5% wt — simultaneous H₂O + CO₂ removal in a single bed
- Available in 1.6–2.5 mm and 3.0–5.0 mm bead sizes
- Regenerable at 200–300°C via hot purge gas or vacuum
Technical Specifications
| Specification | Unit | SQ-13X-B 1.6–2.5 mm | SQ-13X-B 3.0–5.0 mm |
|---|---|---|---|
| Appearance | — | Spherical beads, free of mechanical impurities | |
| Pore Diameter | Å | ~10 | ~10 |
| SiO₂ / Al₂O₃ Ratio | — | ≈ 2.6 – 3.0 | |
| Bulk Density | g/mL | ≥ 0.65 | ≥ 0.64 |
| Particle Size Pass Rate | % | ≥ 90.00 | ≥ 95.00 |
| Static Water Adsorption | % wt | ≥ 24 | ≥ 24 |
| Static CO₂ Adsorption | % wt | ≥ 16.5 | ≥ 16.5 |
| Crush Strength | N/piece | ≥ 20 | ≥ 80 |
| Package Moisture | % wt | ≤ 1.5 | ≤ 1.5 |
* Complies with HG/T2690-2012. All other indicators meet national industry standards.
Applications
Air Separation Units (ASU)
Front-end purification in cryogenic ASUs — simultaneously removes water, CO₂, and trace hydrocarbons from feed air before liquefaction, protecting downstream equipment.
Natural Gas & LPG Treating
Deep removal of water, H₂S, and mercaptans from natural gas and liquefied petroleum gas — meets pipeline and transport specifications in one pass.
Oxygen Separation from Air
Used in PSA/VPSA oxygen generators to preferentially adsorb nitrogen, producing enriched oxygen streams for medical, industrial, and aquaculture applications.
Catalyst Support
High surface area and uniform pore structure make 13X an effective catalyst carrier in petrochemical and fine chemical processes.
Deep Gas Drying
General-purpose deep drying of industrial gases where both water and CO₂ must be removed to very low dew points — suitable for instrument air, synthesis gas, and inert gas streams.
Packaging & Storage
- 25 kg iron drum — standard export packaging, moisture-proof
- 25 kg carton box — with inner foil bag, standard for small orders
- Bulk bag (ton bag) — for large-volume orders
- Custom packaging available on request
- Store at room temperature, relative humidity ≤ 90% — keep away from water, acids, alkalis, and oxidizing agents; store sealed
- Shelf life: 2 years in sealed original packaging
Get a Quote for 13X Molecular Sieve
Tell us your application, required quantity, and destination — we respond within 24 hours.
13X Molecular Sieve Documents & Sample Support
For procurement review, SQ can provide the 13X molecular sieve brochure, technical data, MSDS, COA for 3-5 mm beads, packaging details and sea transport safety documents.
- Recommended particle size: 1.6-2.5 mm or 3.0-5.0 mm
- Common export packing: 25 kg drum, carton or bulk bag
- Trial sample and COA available before bulk order
