3A Molecular Sieve
Product Code: SQ-3A-B · Standard: GB/T10504-2017 · CAS: 308080-99-1

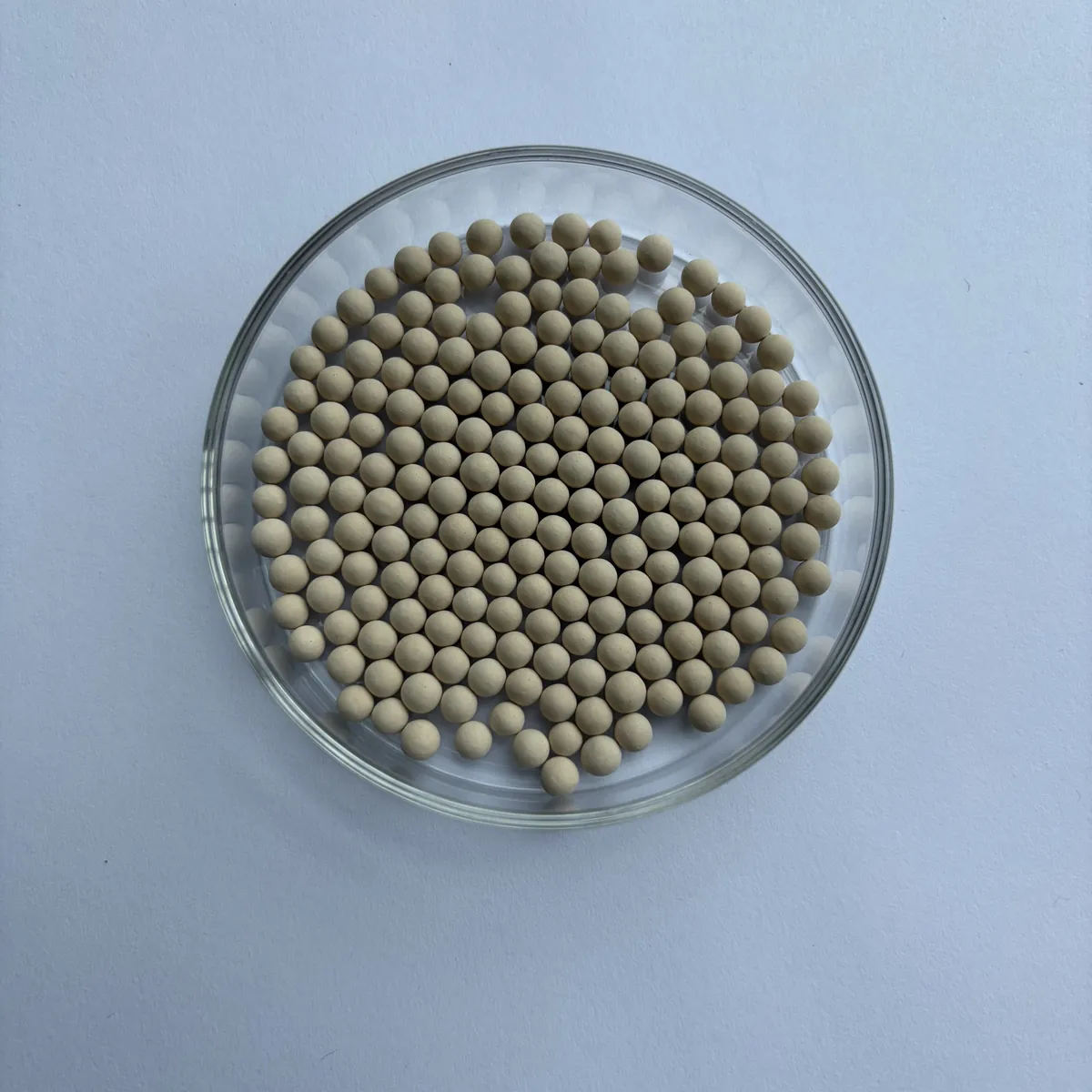

3A Molecular Sieve is a crystalline aluminosilicate with an effective pore opening of 3 Ångströms. It selectively adsorbs water, ammonia, and hydrogen sulfide while excluding ethane, ethylene, and larger molecules — the standard desiccant for insulated glass units, cracked gas drying, and polar solvent dehydration.
- Pore size 3Å — adsorbs H₂O, NH₃, H₂S; excludes ethane & propylene
- Available in 1.6–2.5 mm and 3.0–5.0 mm bead sizes for different applications
- High crush strength — low dust rate, long service life
- Regenerable at 200–300°C via hot purge gas or vacuum
- Available in 25 kg iron drum, carton box, or bulk bag
Technical Specifications
| Specification | Unit | SQ-3A-B 1.6–2.5 mm | SQ-3A-B 3.0–5.0 mm |
|---|---|---|---|
| Appearance | — | Off-white, cream or tan spherical beads, free of mechanical impurities | |
| Pore Diameter | Å | 3 | 3 |
| Bulk Density | g/mL | ≥ 0.75 | ≥ 0.75 |
| Particle Size Pass Rate | % | ≥ 96.00 | ≥ 96.00 |
| Static Water Adsorption | % wt | ≥ 19.5 | ≥ 19.5 |
| Crush Strength | N/piece | ≥ 30 | ≥ 80 |
| Static Ethylene Adsorption | mg/g | ≤ 3.0 | ≤ 3.0 |
| Package Moisture | % wt | ≤ 1.5 | ≤ 1.5 |
* Complies with GB/T10504-2017. All other indicators meet national industry standards.
Applications
Insulated Glass Units (IGU)
1.6–2.5 mm beads absorb residual moisture inside the sealed glass cavity, preventing condensation and fogging. Widely used across Gulf region construction.
Cracked Gas & Olefin Drying
Removes moisture from ethylene, propylene, and butadiene streams without co-adsorbing the hydrocarbons — critical for downstream processing.
Natural Gas Dehydration
Deep dehydration upstream of LNG liquefaction and long-distance pipeline transport.
Refrigerant Drying
Desiccant in refrigeration and air conditioning circuits to prevent freeze-up and acid formation.
Solvent Dehydration
Dehydrates polar solvents including ethanol, methanol, and acetonitrile for pharmaceutical and industrial applications.
Air & Gas Pre-treatment
Pre-treatment drying for air separation units, instrument air systems, and compressed gas lines.
Packaging & Storage
- 25 kg iron drum — standard export packaging, moisture-proof
- 25 kg carton box — with inner foil bag, standard for small orders
- Bulk bag (ton bag) — for large-volume orders
- Custom packaging available on request
- Store in a cool, dry environment — away from moisture and acids
- Shelf life: 2 years in sealed original packaging
Get a Quote for 3A Molecular Sieve
Tell us your application, required quantity, and destination — we respond within 24 hours.
3A Molecular Sieve Documents & Sample Support
For procurement review, SQ can provide the 3A molecular sieve brochure, technical data, MSDS, COA for 3-5 mm beads, packaging details and sea transport safety documents.
- Recommended bead size: 1.6-2.5 mm or 3.0-5.0 mm
- Common export packing: 25 kg drum, carton or bulk bag
- Trial sample and COA available before bulk order
Send Your Requirement
Please include application, particle size, quantity, destination country and required documents.
Request TDS / MSDS / Sample
